Python Embedded Module

If you're using Python and PureData together, you can use the pd module within the py4pd package to exchange data, set configurations, inform users of errors, and use all Python things. The module is embedded in the py4pd code and is only accessible within the py4pd environment. It's similar to how Google Collab uses modules like google.collab.drive and google.collab.widgets. In the next section I present all the methods that are embedded.

Write Pd Objects with Python

With the py4pd it is possible to create new PureData objects using just Python. For that, you need to declare your Python functions and then create a function called libraryname_setup. Inside this function we use pd.add_object (check the docs) to add all functions that you want to use as objects.

The organization of folders in the library should follow the following standard.

Folder Organization

The folder name must be the same the the .py file. In your case, it must be called libraryname.

└── help-patches/
    ├── myfunction1-help.pd # helpPatches
    └── myfunction2-help.pd
└── src/
    ├── setoffunctions1.py # you can organize/name this folder as you want, this is just one example.
    └── setoffunctions2.py

└── resources/
    ├── imagetosomeVISobject.png # for pd.VIS objects, you can set standard images of png or gif.
    └── imagetootherVISobject.gif
├── libraryname.py # here we have the libraryname_setup() function
├── README.deken.pd # If you upload it on Deken, this will open immediately after installation (good to install things).
└── README.md # Ordinary readme for Github.

See the some libraries organization in orchidea.

See the Python Code:

libraryname.py

import pd
from src.setoffunctions1 import myfunction1
from src.setoffunctions2 import myfunction2
from src.setoffunctions2 import showmycollgraph


def libraryname_setup():
    pd.add_object(myfunction1, "mysumObject") # function, string with name of the object
    pd.add_object(myfunction2, "mysumObject2") # function, string with name of the object
    pd.add_object(showmycollgraph, "graph", objtype=pd.VIS, objimage="./resources/imagetosomeVISobject.png")

Following this steps we have this patch:

Types of Objects

In the example above, we create ordinary objects. With py4pd, we can create five types of objects:

Ordinary ObjectsVisualization ObjectsAudio In ObjectsAudio Out ObjectsAudio (in and out) Objects

Used to create functions like sum numbers, convertion between datas (svg to scores, for example), etc.

Used to create functions to show something. Like Scores, Audio descriptors, and others.

To create vis object, in pd.add_object we add the objtype=pd.VIS. Inside the function, we always need the pd.show_image method, without it, anything will be showed. For pd.VIS objects, we have some options in pd.add_object.

figsize: It set the size of the figure that will be showed, this is more for aesthetic reasons (the figure will always be resized).

See the example:

Python Code

import pd
import audioflux as af
import matplotlib.pyplot as plt
from audioflux.display import fill_plot, fill_wave
from audioflux.type import SpectralFilterBankScaleType, SpectralDataType
import numpy as np

def descriptors():
    audio_arr, sr = af.read(pd.get_home_folder() + "/Hp-ord-A4-mf-N-N.wav")
    bft_obj = af.BFT(num=2049, samplate=sr, radix2_exp=12, slide_length=1024,
                   data_type=SpectralDataType.MAG,
                   scale_type=SpectralFilterBankScaleType.LINEAR)
    spec_arr = bft_obj.bft(audio_arr)
    spec_arr = np.abs(spec_arr)
    spectral_obj = af.Spectral(num=bft_obj.num,
                               fre_band_arr=bft_obj.get_fre_band_arr())
    n_time = spec_arr.shape[-1]  # Or use bft_obj.cal_time_length(audio_arr.shape[-1])
    spectral_obj.set_time_length(n_time)
    hfc_arr = spectral_obj.hfc(spec_arr)
    cen_arr = spectral_obj.centroid(spec_arr)

    fig, ax = plt.subplots(nrows=3, sharex=True)
    fill_wave(audio_arr, samplate=sr, axes=ax[0])
    times = np.arange(0, len(hfc_arr)) * (bft_obj.slide_length / bft_obj.samplate)
    fill_plot(times, hfc_arr, axes=ax[1], label='hfc')
    fill_plot(times, cen_arr, axes=ax[2], label="Centroid")
    tempfile = pd.get_temp_dir() + "/descritores.png"
    plt.savefig(tempfile)
    pd.show_image(tempfile)
    pd.print("Data plotted")

def libraryname_setup():
    pd.add_object(descriptors, "descritores", objtype=pd.VIS, figsize=(640, 480))

Descriptors Image

Used to output analised data from audio. Objects with Partial Trackings, Audio Descriptors, and others.

To create Audio In object, in pd.add_object we add the objtype=pd.AUDIOIN.

The first inlet of this objects always need to be audio

Audio Input Image

Python Code

import pd
import numpy

def audioin(audio):
    fft = numpy.fft.fft(audio)
    fft = numpy.real(fft)
    return fft.tolist() # numpy can just be outputed when pyout=True

def libraryname_setup():
    pd.add_object(audioin, "audioin", objtype=pd.AUDIOIN)

Used to create audio using Python. Objects that creates sinusoids, some special noise and others.

To create Audio out object, in pd.add_object we add the objtype=pd.AUDIOOUT.

Audio Output Image

Python Code

import pd
import numpy

def audioin(audio):
    fft = numpy.fft.fft(audio)
    fft = numpy.real(fft)
    return fft.tolist() # numpy can just be outputed when pyout=True

def libraryname_setup():
    pd.add_object(audioin, "audioin", objtype=pd.AUDIOIN)

Used to manipulations of Audio. FFT, reverbs, and others.

To create Audio object (audio input and output), in pd.add_object we add the objtype=pd.AUDIO.

Audio Image

Python Code

import pd
import numpy

def audio(audio, amplitude):
    if amplitude is None:
        amplitude = 0.2
    audio = numpy.multiply(audio, amplitude)
    return audio


def libraryname_setup():
    pd.add_object(audio, "audio", objtype=pd.AUDIO)

Embbeded Module with `py4pd`

Write PureData Objects

`pd.add_object`

You can create your own objects with Python. For that, you define the Python Function and add it as an object using pd.add_object().

Breaking Changes

I had change how pd.add_object work from version 0.6 to version 0.7. Now, me use the function and the Pure Data object. Instead of use this, pd.add_object("mysumObject", "NORMAL", "myNewPdObjects", "mysumObject") we use this pd.add_object(mysumObject, "mysumObject").

ParametersKeywordsExamples

Parameters	Type	Description
`arg1`	`Python Function`	Function that will be executed by the object.
`arg2`	`String`	String to create the object.

Keyword	Type	Description
`objtype`	`pd`	The type of the object: `pd.VIS`, `pd.AUDIO`, `pd.AUDIOIN`, or `pd.AUDIOOUT`. Hiding this option will create a normal object.
`figsize`	`Tuple`	Sets the pixel size of the object. Example: `figsize=(400, 200)` creates an object with a width of 400 and height of 200.
`pyout`	`Boolean`	Determines whether the output will be in PureData data types or Python data types. If set to Python, you can not use the data before the convertion to PureData with `py2pd` object.
`no_outlet`	`Boolean`	Creates an object with no outlets if set to `True`.
`num_aux_outlets`	`int`	Set the number of auxiliar outlets. If you use 4, it means that the object will have 5 inlets, 4 auxiliar and the main outlet (0).
`added2pd_info`	`Boolean`	Prints the message `"[py4pd]: Object {objectName} added."` when set to `True`.
`helppatch`	`String`	Personalized help patch, it always must be inside the `help` folder.
`ignore_none_return`	`Boolean`	When `True` it ignores all things that return None.
`objimage`	`String`	Set the standard image for `pd.VIS` objects. When you create the object it will load this image.

pd.add_object(myFunction, "mypyobj",
            objtype=pd.VIS, figsize=(400, 200),
            pyout=True, no_outlet=False, added2pd_info=False)

import pd


def mysumObject(a, b, c, d):
    return a + b + c + d

def libraryname_setup():
    pd.add_object(mysumObject, "mysumObject")

    # My License, Name and University, others information
    pd.print("", show_prefix=False)
    pd.print("GPL3 2023, Your Name", show_prefix=False)
    pd.print("University of São Paulo", show_prefix=False)
    pd.print("", show_prefix=False)

Here we add the function mysumObject in PureData enviroment. For more infos read the Python Objects page.

My New PD Object

Exchanging Data

These are the methods used to send data from Python to PureData. The inverse path is done mainly with run and key messages.

`pd.out`

pd.out() allows you to output data to PureData without needing to wait for the Python function to finish executing. This is different from returning data to PureData using the return statement, which requires the function to complete before sending data.

ParametersKeywordsExamples

Parameters	Type	Description
`arg1`	`Python Object`	Python thing that will be outputed.

Parameters	Type	Description
`symbol`	`string`	It prepend the string in the output, can be used with `route` object.

For example, consider the following function:

import pd


def example_pdout():
    for x in range(10):
        pd.out(x, symbol="loop")
    pd.out("fim", symbol="end")

`pd.send`

You can use pd.send to send data to a receive object in your PureData patch. This method takes in two arguments: the name of the receive object and the value you want to send. For instance, suppose you have a receive object named "myReceiver" in your patch. To send the value 42 to this object, you could use pd.send("myReceiver", 42).

ParametersExamples

Parameters	Type	Description
`arg1`	`string`	Name of the receive object.
`arg2`	`Python Object`	Data that will be sent.

import pd


def pd.send():
    "It sends a message to the py4pdreceiver receive."
    pd.send("py4pdreceiver", "hello from python!")
    pd.send("py4pdreceiver", 1)
    pd.send("py4pdreceiver", [1, 2, 3, 4, 5])
    return 0

In this example, it will send to py4pdreceiver the message "hello from python!", then the number 1, then the list [1, 2, 3, 4, 5].

`pd.tabwrite`

pd.tabwrite is a method that is essentially a copy of the tabwrite object in PureData. With this method, you can write audio or any data supported to PureData array.

ParametersKeywordsExamples

Parameters	Type	Description
`arg1`	`string`	Name of the table.
`arg2`	`Python Object`	List or array (numpy) of numbers.

Keyword	Type	Description
`rezise`	`Boolean`	Set if the table will be resized or not.

  pd.tabwrite("table2test", randomNumbers, resize=True)

`pd.tabread`

pd.tabread is a method that is essentially a copy of the tabread object in PureData. With this method, you can read data from a PureData array directly from within your Python code. It will return one Numpy Array with the data of the table.

ParametersExamples

Parameters	Type	Description
`arg1`	`string`	Name of the table.

import pd

def readFromArray():
    valuesFromArray = pd.tabread("py4pdArray")
    return valuesFromArray # This code don't make any sense :), but you understand it.

Info for the user

There are three messages used to print info in the PureData console, pd.print, pd.logpost and pd.error.

`pd.print`

The ordinary function print() will not work in py4pd (unless that you open PureData from the terminal). So if you want to debug or print some info from the PureData console you need to use pd.print.

ParametersKeywordsExamples

Parameters	Type	Description
`arg1`	`Python Object`	Thing to print

Parameters	Type	Description
`show_prefix`	`Python Object`	When `False` it remove the string "[Python]" from the begin of the message

import pd

pd.print("ok") # It prints "[Python] ok"
pd.print("ok", show_prefix=False) # It prints "ok".

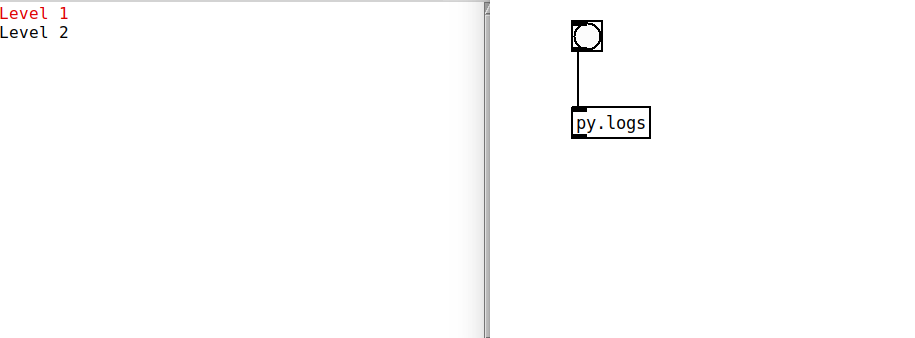

`pd.logpost`

This function uses logpost in C PureData API to log messages using levels. For example, if you use logpost(4, "PureData message in level 4"), the message will appear in console just if the user had selected to show the messages of level 4 in PureData Console.

ParametersExamples

Parameters	Type	Description
`arg1`	`int`	Level to print (1-4)
`arg2`	`string`	Message to print

import pd

pd.logpost(1, "Level 1")
pd.logpost(2, "Level 2")
pd.logpost(3, "Level 3")
pd.logpost(4, "Level 4")

`pd.error`

If you want to inform errors in PureData console use pd.error method.

ParametersExamples

Parameters	Type	Description
`arg1`	`string`	Message of the error.

import pd

def main(arg1):
    if isinstance(arg1, list):
        for i in range(1, 10):

    try:
        # some wrong arg here ????

    except:
        pd.error("This is a not valid operation")

Utilities

`pd.get_str_pointer`

When working with audio objects, there are situations where we require global variables or variables that retain their values across different runs. For instance, when creating a Python function to generate a sine wave, we may need a global variable for the phase in order to generate a continuous waveform. However, using Python Global Variables can be problematic when working with multiple objects, as all functions would modify the phase value, potentially overwriting it unintentionally. To address this issue, we introduced the pd.get_obj_pointer function, which returns a unique string representing the pointer of the C object. This string is unique for each object and can be utilized in other contexts to locate and retrieve the desired global variable.

ParametersExamples

There is no args for this function.

It just returns unique string.

import pd

print(pd.get_str_pointer())

`pd.get_obj_var`

When working with audio objects, we have another helpful function called pd.get_obj_var. This function serves a similar purpose to pd.get_obj_pointer. Here, it creates the variable automatically if it doesn't exist yet.

ParametersKeywordsExamples

Parameters	Type	Description
`arg1`	`string`	Object Variable Name.

Parameters	Type	Description
`initial_value`	`Python Object`	With `initial_value` you can set one initial value for the string.

In the code snippet below, when we use pd.get_obj_var("PHASE"), it retrieves the value of the variable associated with the current running object. If the value hasn't been set yet, it will be initialized to 0.0.

phase = pd.get_obj_var("PHASE", initial_value=0.0)

`pd.set_obj_var`

To set new values for the variable of the object we use pd.set_obj_var. In audio objects, for example, this value you be saved for the next block (next run) calculation.

ParametersExamples

Parameters	Type	Description
`arg1`	`string`	Object Variable Name.
`arg2`	`Python Object`	Any Python Object.

pd.set_obj_var("PHASE", phase)

Images

`pd.show_image`

With py4pd you can display images inside PureData patches using Python, you can use the pd.show_image method. This method is essentially a copy of the else/pic object, but with an interface that allows you to easily show images from within your Python code.

Supported extensions

You can just use .png, .gif, and .ppm image formats.

ParametersExamples

Parameters	Type	Description
`arg1`	`string`	Pathname for the image that will be showed.

Bring scores to PureData.

Code

import pd
from random import randint
import os
try:
    from neoscore.common import *
except Exception as e:
    pd.error(str(e))
    pd.error(
        "Please, run 'pip install neoscore -t ./py-modules' in the terminal from current folder")


def getpitchKey(pitch):
    note = {
        # natural
        'c': ['c', ''],
        'd': ['d', ''],
        'e': ['e', ''],
        'f': ['f', ''],
        'g': ['g', ''],
        'a': ['a', ''],
        'b': ['b', ''],
        # sharp
        'c#': ['c', 'accidentalSharp'],
        'd#': ['d', 'accidentalSharp'],
        'e#': ['e', 'accidentalSharp'],
        'f#': ['f', 'accidentalSharp'],
        'g#': ['g', 'accidentalSharp'],
        'a#': ['a', 'accidentalSharp'],
        'b#': ['b', 'accidentalSharp'],
        # flat
        'cb': ['c', 'accidentalFlat'],
        'db': ['d', 'accidentalFlat'],
        'eb': ['e', 'accidentalFlat'],
        'fb': ['f', 'accidentalFlat'],
        'gb': ['g', 'accidentalFlat'],
        'ab': ['a', 'accidentalFlat'],
        'bb': ['b', 'accidentalFlat'],
    }
    return note[pitch]


def chord(pitches):
    try:
        neoscore.shutdown()
    except BaseException:
        pass
    neoscore.setup()
    py4pdTMPfolder = pd.get_temp_dir()
    for file in py4pdTMPfolder:
        if file.endswith(".ppm"):
            try:
                os.remove(py4pdTMPfolder + "/" + file)
            except BaseException:
                pass
    staffSoprano = Staff((Mm(0), Mm(0)), None, Mm(30))
    trebleClef = 'treble'
    Clef(ZERO, staffSoprano, trebleClef)
    staffBaixo = Staff((ZERO, Mm(15)), None, Mm(30))
    bassClef = 'bass'
    Clef(ZERO, staffBaixo, bassClef)
    Path.rect((Mm(-10), Mm(-10)), None, Mm(42), Mm(42),
              Brush(Color(0, 0, 0, 0)), Pen(thickness=Mm(0.5)))
    for pitch in pitches:
        # in pitch remove not number
        pitchWithoutNumber = pitch.replace(pitch[-1], '')
        pitchOctave = int(pitch[-1])
        pitchClass, accidental = getpitchKey(pitchWithoutNumber)
        note = [(pitchClass, accidental, pitchOctave)]
        if pitchOctave < 4:
            Chordrest(Mm(5), staffBaixo, note, (int(1), int(1)))
        else:
            Chordrest(Mm(5), staffSoprano, note, (int(1), int(1)))
    randomNumber = randint(1, 100)
    notePathName = py4pdTMPfolder + "/" + pitch + f"{randomNumber}.ppm"
    neoscore.render_image(rect=None, dest=notePathName, dpi=150, wait=True)
    neoscore.shutdown()
    if os.name == 'nt':
        notePathName = notePathName.replace("\\", "/")
    pd.show_image(notePathName) ## HERE THE pd.show_image
    return None

pd.out Example

File Management

`pd.get_patch_dir`

In py4pd, pd.get_home_folder is a function that returns the path to the directory where the currently-running PureData patch is located. This can be useful for accessing files and resources relative to the location of the patch.

ParametersExamples

There is no args for this function.

It just returns unique string with the pathname.

import pd

print(pd.get_patch_dir())

`pd.get_temp_dir`

pd.get_temp_dir returns one pathname to save stuff that won't be used more than once, all files inside this folder are deleted when the PureData patch is closed.

ParametersExamples

There is no args for this function.

It just returns unique string.

import pd

print(pd.get_temp_dir())

`pd.get_py4pd_dir`

pd.get_py4pd_dir returns the folder where the binary of py4pd is located.

ParametersExamples

There is no args for this function.

It just returns unique string.

import pd

print(pd.get_py4pd_dir())

Audio Info

`pd.get_sample_rate`

This get the current samplerate of PureData. You can use the pd.SAMPLERATE variable too.

ParametersExamples

There is no args for this function.

It just returns unique string.

import pd

print(pd.get_sample_rate())

`pd.get_vec_size`

This get the current vectorsize/blocksize of PureData. This get the vector size of the object, so it is inside some patch with block~ 128 and the PureData is configured with vectorsize = 64 it will return 128. To get the PureData vector size you can use pd.VECSIZE.

ParametersExamples

There is no args for this function.

It just returns unique string.

import pd

print(pd.get_vec_size())

Python Embedded Module

Write Pd Objects with Python

Types of Objects

Embbeded Module with py4pd

Write PureData Objects

pd.add_object

Exchanging Data

pd.out

pd.send

pd.tabwrite

pd.tabread

Info for the user

pd.print

pd.logpost

pd.error

Utilities

pd.get_str_pointer

pd.get_obj_var

pd.set_obj_var

Images

pd.show_image

File Management

pd.get_patch_dir

pd.get_temp_dir

pd.get_py4pd_dir

Audio Info

pd.get_sample_rate

pd.get_vec_size

Embbeded Module with `py4pd`

`pd.add_object`

`pd.out`

`pd.send`

`pd.tabwrite`

`pd.tabread`

`pd.print`

`pd.logpost`

`pd.error`

`pd.get_str_pointer`

`pd.get_obj_var`

`pd.set_obj_var`

`pd.show_image`

`pd.get_patch_dir`

`pd.get_temp_dir`

`pd.get_py4pd_dir`

`pd.get_sample_rate`

`pd.get_vec_size`
